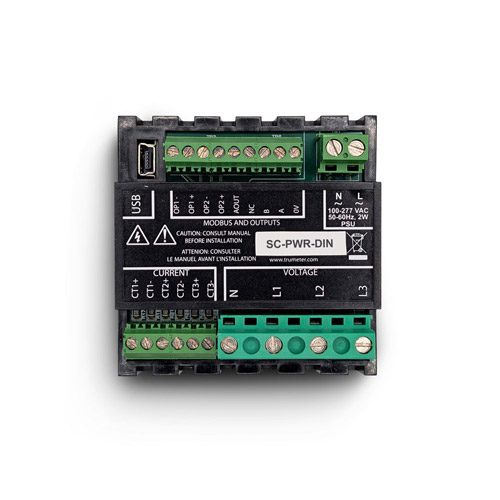

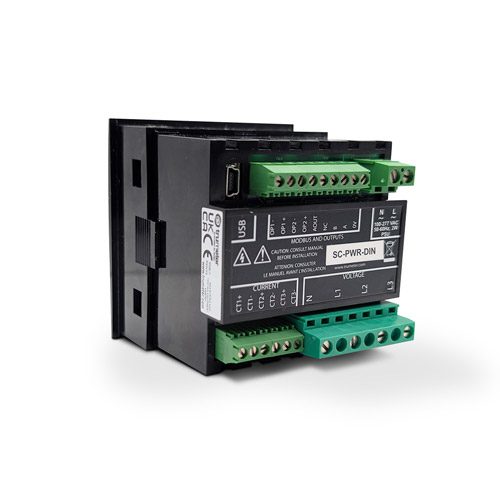

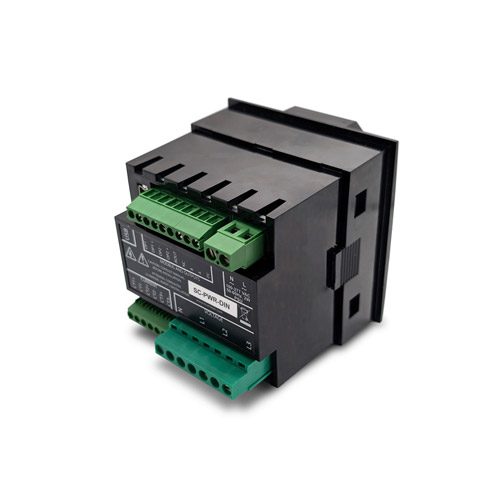

Power Signal Conditioner
DIN rail-mount signal conditioner for monitoring power in single, split and 3-phase networks
The Power Signal Conditioner delivers precise monitoring for single-, split-, and three-phase systems, measuring power, voltage, current, frequency, power factor, and THD. Configurable Modbus RTU communication, two digital outputs, and one 4–20 mA analog output provide flexible integration, while 10 independent alarm setpoints with configurable digital output delays ensure precise performance monitoring.
Setup and configuration is easy with the free signal conditioner configuration software, offering comprehensive configurability including programmable CT and PT ratios, for precise, adaptable monitoring across various applications.
- Measure 0 – 5A direct, 0–10,000 kA via CT, 50–60 Hz, 0–300 V AC (LN) / 0–600 V AC (LL 1P) / 0-520V (LL 3P) across IP2W, IP3W, 3P3W, and 3P4W networks.
- Specifically designed to integrate with potential and current transformers.
- Modbus RTU over RS485.
- 2 digital outputs, 1 analog (4-20mA).
- 10 alarm setpoints & configurable digital output delays.

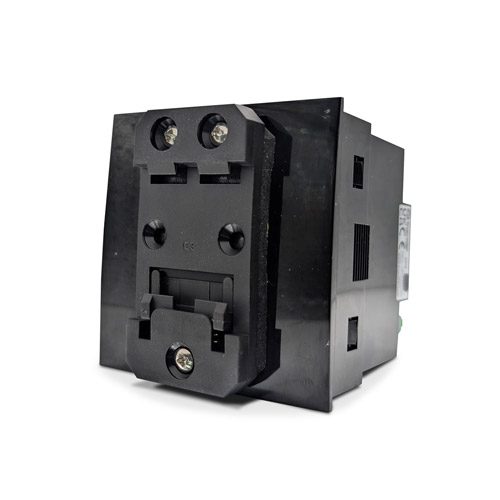

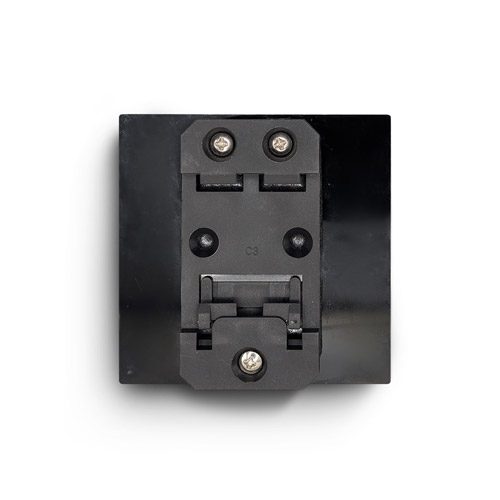

- Standard Top Hat Slotted (TS35) DIN rail–mount for easy integration.
- 1% accuracy across the input range.
- Pair with the IOT Gateway for seamless connection to Trumeter Cloud – remote monitoring, data logging, email alerts, and more. Utilize user-configurable scaling, range, 20-point non-linearization scaling and more.
Specifications
| SC Input | 0 – 10,000KA via CT, 0 – 300V AC (L-N), 0 – 600V AC (L-L), 50 – 60Hz |
|---|---|
| Networks | IP2W, IP3W, 3P3W, 3P4W |
| PSU | Input: 100 – 277V AC, Max Power: 2W, Supply Frequency: 50 – 60Hz |
| Outputs | Max Sink Current: 15mA, Max Voltage: 24VDC, Output 1: Digital (opto-isolated), Output 2: Digital (opto-isolated), Output 3: Analog (4 – 20mA) |
| Communication | Modbus RTU over RS485 |
| Dimensions | 72mm x 72mm x 80.6mm |
| Accuracy | 1.0% |
| Certifications | CE, cUL, ROHS, UL, IP20 |
Part Numbers
SC-PWR-DIN – Power Signal Conditioner, DIN Rail Mount
029461-01 – USB A to USB Mini B Cable
029461-01 – USB A to USB Mini B Cable
