Vista Touch: Power

An IoT ready HD touch screen Power Meter for single, split and 3 phase networks

A revolutionary panel meter, the Vista Touch Power Meter provides optimal power monitoring for single, split and 3 phase networks. The vibrant graphic display with touchscreen interface offers full configurability.

The Vista Touch Power Meter has proven industry communication protocols such as Modbus RTU(RS485) and TCP/IP(Ethernet).

  • Built-in remote monitoring with free subscription to Trumeter Cloud
  • 1% accuracy across the input range
  • Vibrant, full color 70mm x 70mm [2.76″ x 2.76″] graphics display
  • Load and save configuration data to a USB flash drive
  • Industry standard ¼ DIN mounting
  • Local data logging through USB

> Download the Latest Software

Shop Our Distributors

Need a Large Quantity?
Contact us for inquiries on OEM pricing.

datalogging-datasheet-icon

Specifications

Input

0 – 10,000KA via CT, Secondary: 0 – 5A via CT, 0 – 600V AC, 10 – 300V AC, 45 – 65 Hz

Network

IP2W, IP3W, 3P3W, 3P4W

Power Supply

Mains Version: Input: 100 – 277V AC, Supply Frequency: 50 – 60Hz, 10W
LV Version: 12-24V AC/DC, Supply Frequency: 50 – 60Hz, 10W

Outputs

Output 1: Form C Relay (277V AC / 5A Max | 30V DC / 5A Max), Output 2: Form C Relay (277V AC / 5A Max | 30V DC / 5A Max), Output 3: Analog (4 – 20mA)

Communication

RS485 – Modbus RTU
Ethernet – Modbus TCP
Platform – Trumeter IoT Cloud
USB – Mass storage (USB flash drive)

Certifications

CE, cUL, IP65, ROHS, UKCA, UL, EN61010-1, NEMA250, UL50 Type 12

Dimensions

3.94in x 3.94in x 3.52in | 100mm x 100mm x 89.3mm

Why Choose Vista Touch Power?

The Vista Touch Power Meter provides optimal power monitoring for single, split and 3 phase networks making it suitable for managing electrical systems in various industries including:

  • Industrial automation and manufacturing
  • Commercial and residential buildings
  • Renewable energy systems
  • Utilities, switchgear and generators
  • Data centers and IT infrastructure
  • EV charging stations
  • Marine and offshore applications
  • Mining and heavy equipment

Vista Touch Power offers full configurability with multiple, vibrant, pre-loaded gauge options. All with an industry standard mounting to make it easy to incorporate into your systems.

Measurement Parameters

Get insight into over 15 parameters and clear indication of electrical circuit performance.

  • L1 frequency
  • Line-to-line voltage (L1-L2, L2-L3, L3-L1, average)
  • Line-to-neutral voltage (L1-N, L2-N, L3-N, average)
  • Current (L1, L2, L3, average)
  • Active power (W) (L1, L2, L3, total)
  • Apparent power (VA) (L1, L2, L3, total)
  • Total reactive power (Var) (L1, L2, L3, total)
  • Rated load (%) (L1, L2, L3, total)
  • Power factor (L1, L2, L3, average)
  • THD voltage (L1, L2, L3, average)
  • THD current (L1, L2, L3, average)
  • Current phase angle (L1, L2, L3)
  • L1 to L2 voltage phase angle (L1-L2, L1-L3)
  • Accum. fwd. active energy (kWh) (L1, L2, L3, total)

Product Design & Customization

The Vista Touch platform offers a multitude of customization possibilities, from white labelling and custom gauge designs to IoT functionality, PCBA structure, additional accessories, and more.

At Trumeter, our team of expert engineers can bring your ideas to life.

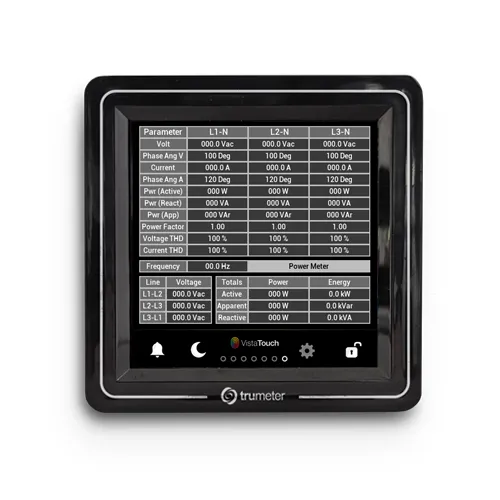

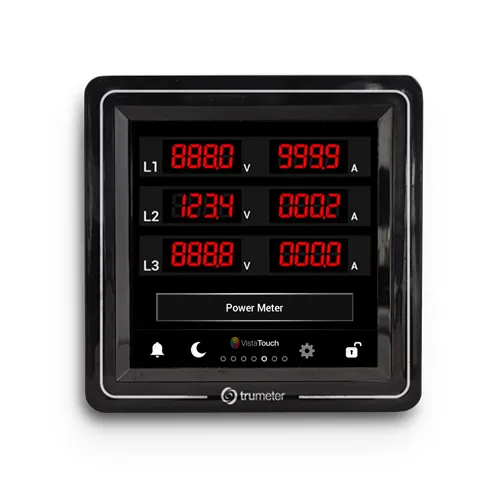

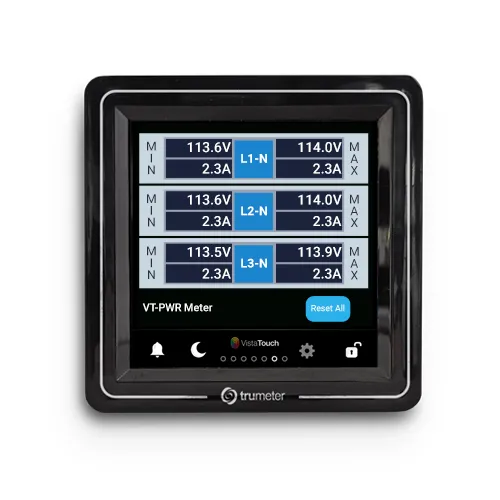

Unique, Easy-to-Read Display

The vibrant display offers real-time monitoring of critical electrical parameters, signaling the health and performance of your power systems. Flashing, color-changing alerts prevent equipment damage or downtime:

  • Intuitive touchscreen interface
  • HD graphics display
  • Multiple screens for different applications and parameters
  • Day and night options for each screen
  • Large 70mm x 70mm display
  • Color-changing background for instant alerts

User-Configurable Power Meter

The Vista Touch Power Meter is fully configurable via the touchscreen display. Customize the display as well as threshold values for each parameter and set alerts when deviations exceed acceptable limits:

  • Selectable screen layout
  • Programable range and scaling
  • Selectable network (1P2W, 2P3W, 3P3W, 3P4W)
  • Configurable I/Os
  • Programmable CT and PT ratios
  • Programmable ranges and scales
  • Custom alert triggers, alarm messages and event notifications
  • Load and save configuration to USB flash drive

Remote Monitoring

The entire Vista Touch line has built-in remote monitoring with free access to Trumeter Cloud. It’s ideal for managing multiple systems or for inaccessible locations. Monitor the status of your systems from anywhere and get:

  • Access to the Trumeter Cloud remote monitoring dashboard where you can monitor multiple meters.
  • Exportable data stored securely in the Cloud
  • On-screen alerts for alarm conditions
  • Unlimited email notifications, plus options to add instant text messages

Output & Communications

The Vista Touch Power Meter is equipped with:

  • 2 form C relay outputs
  • 1 4-20mA analog output
  • 2 digital inputs

The I/O are all configurable through the on-screen menu.

The Vista Touch Power Meter can also be configured for Modbus RTU and TCP for enhanced integration with outside systems.
