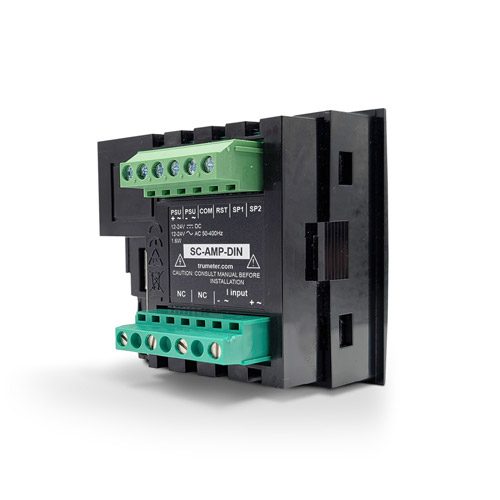

The Amp Signal Conditioner measures AC and DC currents up to 5 A with 1% accuracy, automatically detecting the input type for seamless operation. True RMS ensures accurate readings for all waveforms, enabling precise monitoring and enhanced safety for industrial and commercial applications. The Amp Signal Conditioner’s two outputs, selectable as digital or analog, are configured via the free signal conditioner configuration software.

• 0-5A direct input range with AC/DC auto-detect.
• 1% accuracy (with up to 50mA fluctuation)
• Dual outputs configurable as digital (open collector) or analog (4–20 mA).

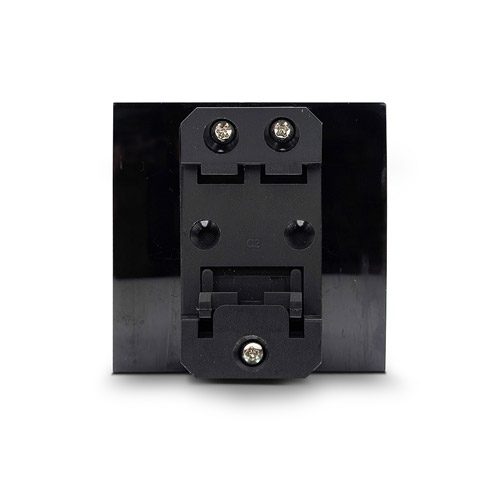

• Standard Top Hat Slotted (TS35) DIN rail–mount for easy integration.
• 10 alarm setpoints and configurable digital output delays.
• 20 point non-linearization scaling (for non-linear sensors).
• User-configurable scale, range, alarms, outputs and more.
• Remote monitoring with Trumeter Cloud and IOT Gateway.

If you are using a current transformer and measuring AC current, we recommend using our CT Signal Conditioner >
If you are using a shunt and measuring DC current, we recommend using our Shunt Signal Conditioner>

Available with a screen as the Amp Meter >
