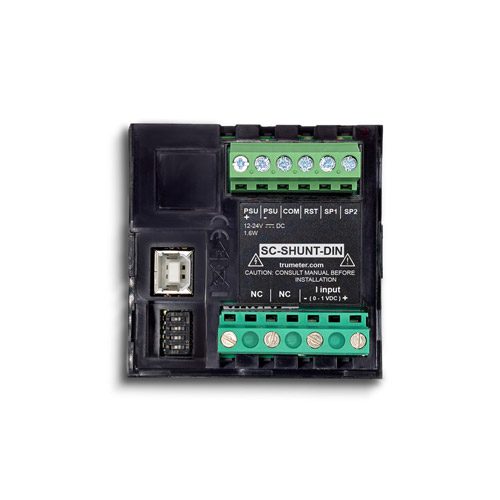

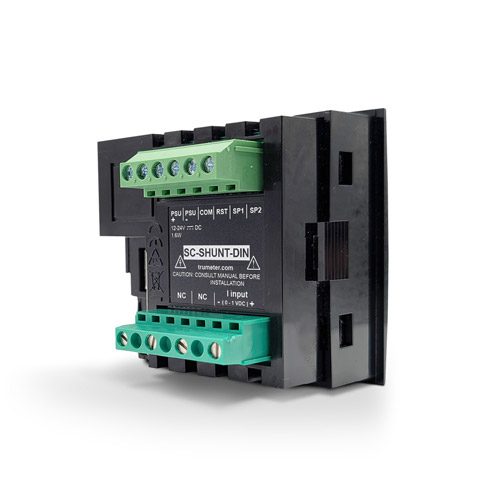

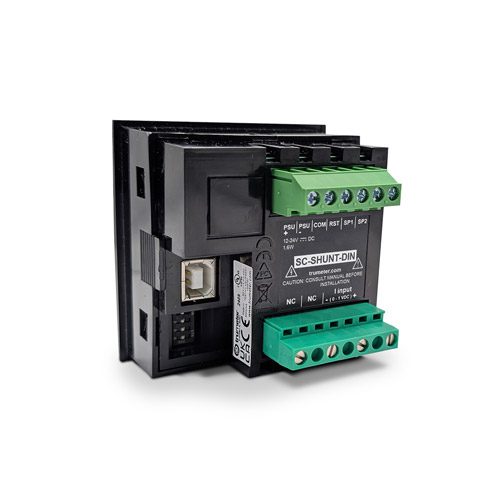

Shunt Signal Conditioner

The Shunt Signal Conditioner delivers high-accuracy low-side DC current measurement through a high-resolution 0–1 V DC input. Designed for use with external shunts up to 1000 mV, it simplifies current measurement while reducing isolation requirements. The unit offers 0.1% measurement accuracy or 0.5 mV (whichever is greater), making it ideal for battery monitoring, energy storage systems, DC power supplies, data centers, and industrial automation.

With the free signal conditioner configuration software, the dual outputs can be set as digital open collector or analog 4–20 mA, while advanced features such as 10 alarm setpoints, output delay adjustments, and additional parameters can be fully customized

• Designed for use with external shunts on low side applications.
• Works with shunts up to 1000mV.
• High resolution 0-1V DC input.
• Measures to 0.1% accuracy of the signal or 0.5mV (whichever is greater).
• Dual outputs configurable as digital (open collector) or analog (4–20 mA).
• 10 alarm setpoints & configurable digital output delays.

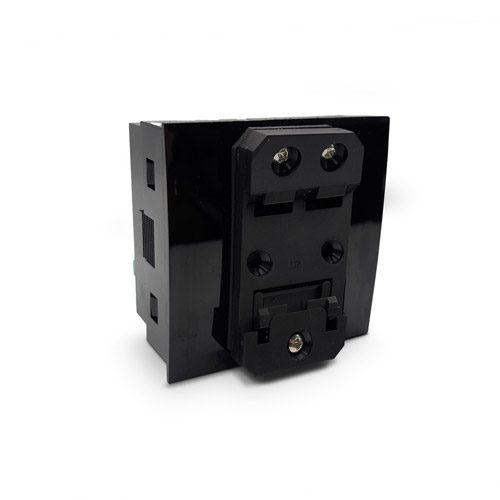

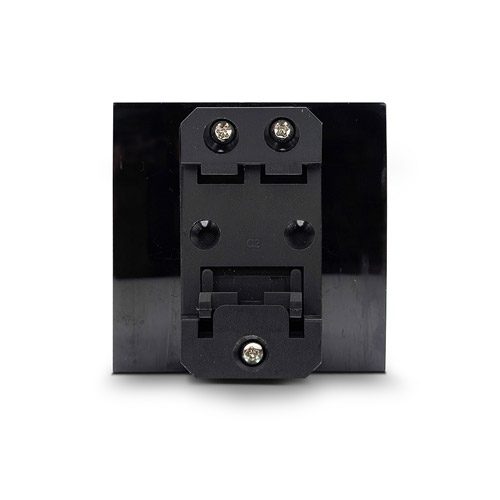

• Standard Top Hat Slotted (TS35) DIN rail–mount for easy integration.
• User-configurable scale, range, alarms, outputs and more.
• 20-point non-linearization scaling for non-linear sensors.
• Remote monitoring with Trumeter Cloud and IOT Gateway.

If you are using a current transformer and measuring AC current, we recommend using our CT Signal Conditioner >

Available with a screen as the Shunt Meter >
