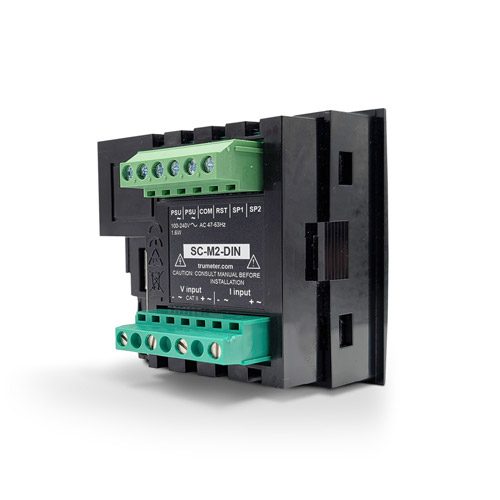

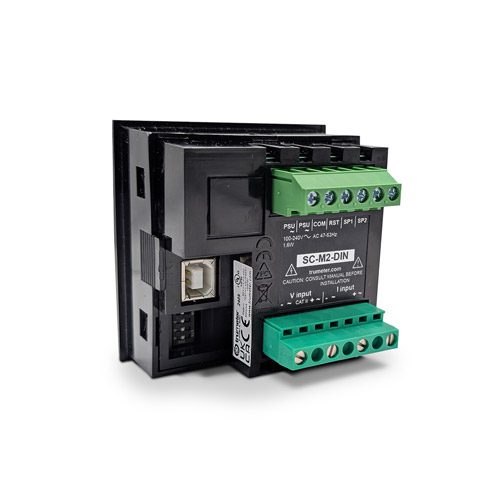

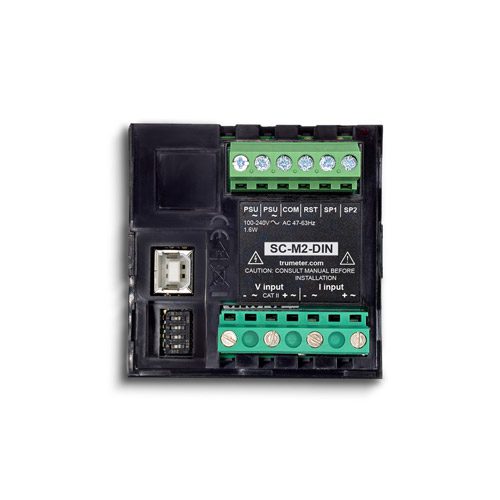

The M2 Signal Conditioner is a versatile, 3-in-one measurement solution that can be configured to measure current up to 5 A directly (or up to 10,000 A using a CT), voltage up to 600 V AC/DC, or frequency from 2–400 Hz. With 1% measurement accuracy, making it an adaptable choice for a wide variety of monitoring and control applications.

Powered directly by 100–240V AC mains, the unit requires no external power supply. Using the free signal conditioner configuration software, users can tailor settings including dual outputs (configurable as digital open collector or analog 4–20 mA), 10 independent alarm setpoints, programmable output delays, and 20-point non-linear scaling for precise conversion of signals from non-linear sensors, and more.

• 100-240V AC mains powered no additional power supply required.
• 3-meters-in-1: Configurable to measure current, voltage or frequency.
• Dual outputs configurable as digital (open collector) or analog (4–20 mA).
• Measures to 1% accuracy.

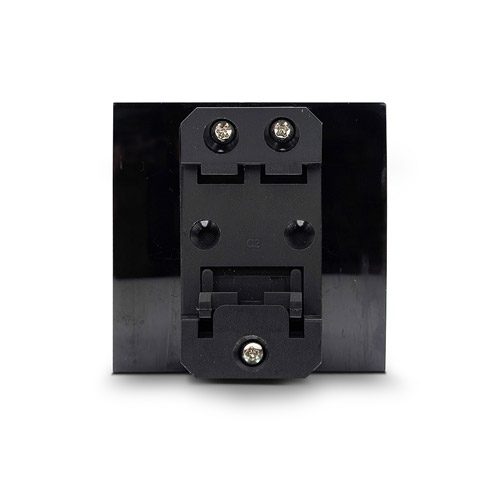

• Standard Top Hat Slotted (TS35) DIN rail–mount for easy integration.
• 10 alarm setpoints & configurable digital output delays.
• 20-point non-linearization scaling for non-linear sensors.
• User-configurable scale, range, alarms, outputs and more.
• Unlock remote monitoring with Trumeter Cloud by combining with the IOT Gateway.

Available with a screen as the M2 Meter >
