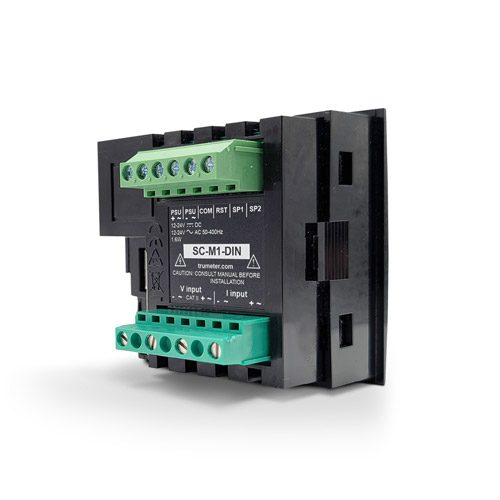

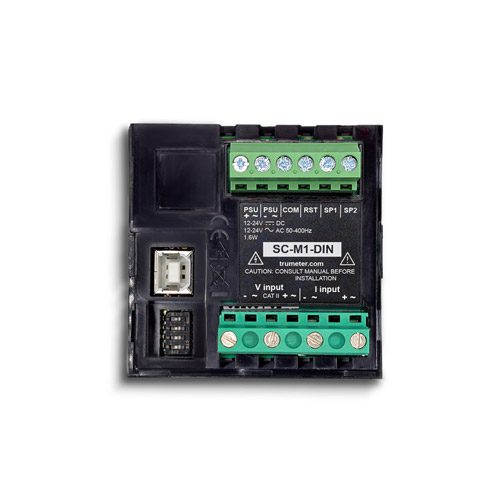

M1 Signal Conditioner
DIN rail-mount multi-function signal conditioner: measures voltage, current, or frequency; 12–240 V AC/DC power supplies
The M1 Signal Conditioner is a versatile, DIN rail–mountable unit that is easily programmed via the Signal Conditioner configuration software to suit a wide range of applications. It can measure current up to 5 A (or up to 10,000 A with a CT), voltage up to 600 V AC/DC, and frequency from 2–400 Hz, making it an all-in-one solution for diverse measurement needs.
- 3-meters-in-1: Configurable to measure current, voltage or frequency.
- Measures to 1% accuracy.

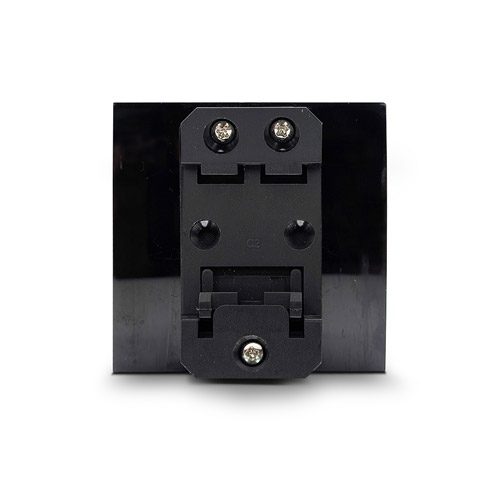

- Standard Top Hat Slotted (TS35) DIN rail–mount for easy integration.
- User-configurable scale, range, alarms, outputs and more.
- 20-point non-linearization scaling for non-linear sensors.
- 10 alarm setpoints & configurable digital output delays.
- Dual outputs configurable as digital (open collector) or analog (4–20 mA).
- Remote monitoring with Trumeter Cloud and IOT Gateway.
Specifications
| SC Input | 0 – 10,000KA via CT, 0 – 5A Direct, 0 – 600V DC/AC (+/-), 2 – 400Hz |
|---|---|
| PSU | 12 – 24V AC/DC |
| Outputs | Output 1: Digital (open collector) or Analog (4-20mA), Output 2: Digital (open collector) or Analog (4-20mA) |
| Dimensions | 72mm x 72mm x 61mm |
| Accuracy | 1.0% |
| Certifications | CE, cUL, ROHS, UL, IP20 |
Part Numbers
SC-M1-DIN – M1 Signal Conditioner, DIN Rail Mount
029461-01 – USB A to USB Mini B Cable
029461-01 – USB A to USB Mini B Cable
