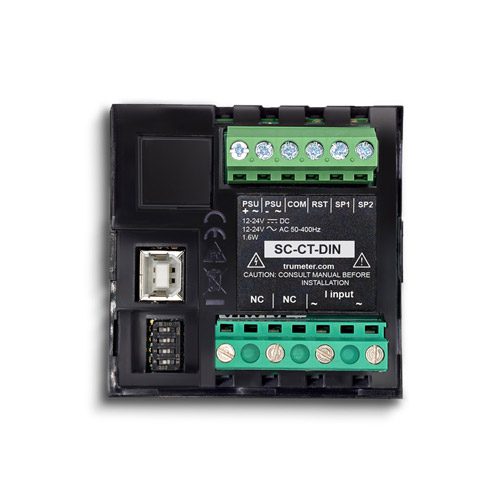

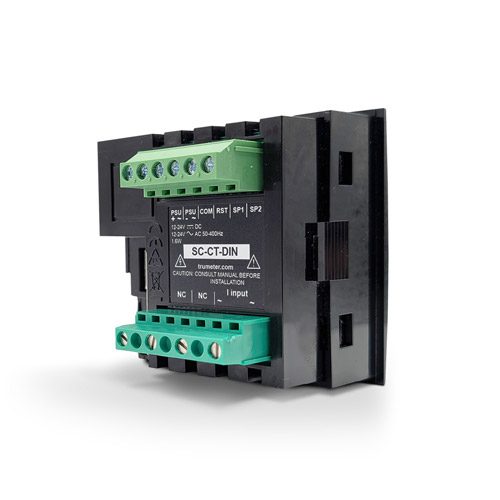

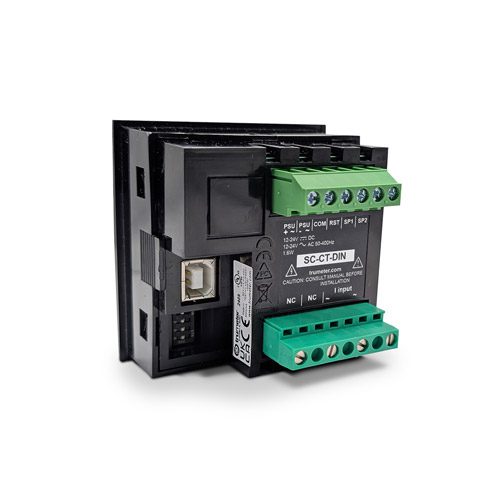

CT Signal Conditioner
DIN rail-mount signal conditioner for measuring AC current via a CT
The CT Signal Conditioner monitors AC currents up to 10,000 A in networks using a CT. Its compact, DIN rail–mountable design fits space-limited panels and downstream system integration. Highly configurable with the free signal conditioner configuration software, it offers adjustable scale and range, 10 alarms, digital output delays (0.5–120 s), and 16 pre-set configurations. Two configurable outputs (digital or analog 4-20mA) support PLC, SCADA, and automation integration.
- Monitors AC currents up to 10,000A with a CT.
- High resolution 5A input provides 0.5% accuracy.

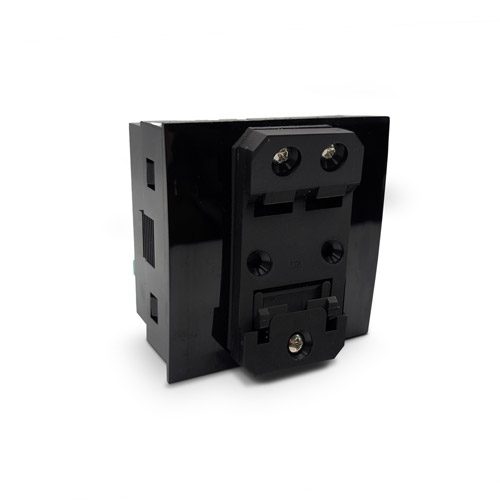

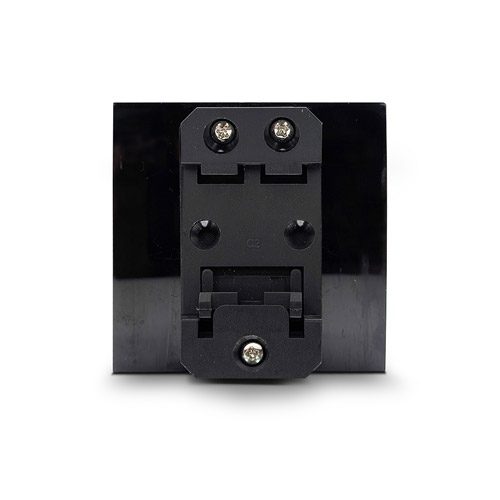

- Standard Top Hat Slotted (TS35) DIN rail–mount for easy integration.
- User-configurable scale, range, alarms, outputs and more.
- 20-point non-linearization scaling for non-linear sensors.
- 10 alarm setpoints & configurable digital output delays.
- Dual outputs configurable as digital (open collector) or analog (4–20 mA).
- Remote monitoring with Trumeter Cloud and IOT Gateway.
If you are using a shunt and measuring DC current, we recommend using our Shunt Signal Conditioner >
Specifications
| SC Input | 0 – 10,000KA via CT, 0 – 5A Direct |
|---|---|
| PSU | 12 – 24V AC/DC |
| Outputs | Output 1: Digital (open collector) or Analog (4-20mA), Output 2: Digital (open collector) or Analog (4-20mA) |
| Dimensions | 72mm x 72mm x 61mm |
| Accuracy | 0.5% |
| Certifications | CE, cUL, ROHS, UL, IP20 |
Part Numbers
SC-CT-DIN – CT Signal Conditioner, DIN Rail Mount
029461-01 – USB A to USB Mini B Cable
029461-01 – USB A to USB Mini B Cable
