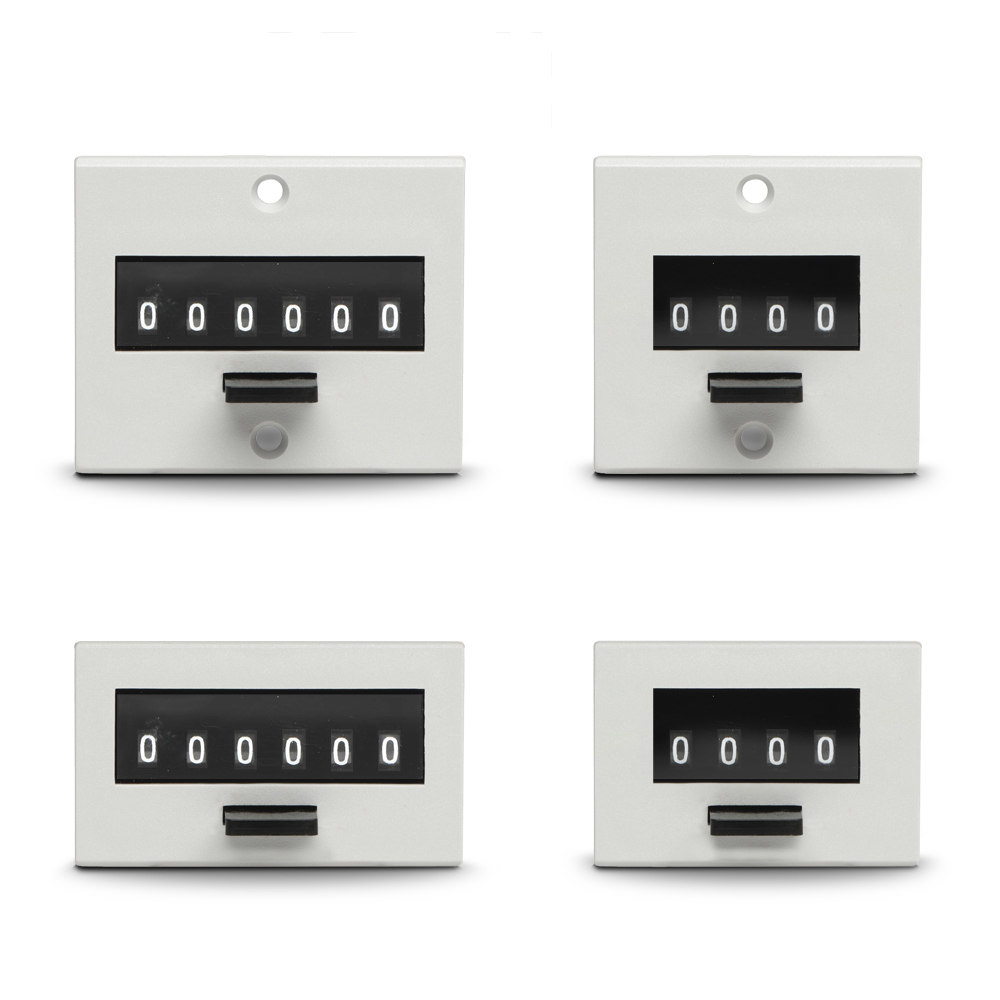

49 Series
Economical, Compact Counters
The 49 Series are economical, electromechanical totalizing counters in a compact size. Their hard-wearing operating mechanisms require no lubrication or maintenance.
Shop Our DistributorsNeed a Large Quantity?
Contact us for inquiries on OEM pricing.
Specifications
| Counter Type | Totalizing Counter |
|---|---|
| Certifications | CE, UL |
| Digits | 4 Digits, 6 Digits |
| Reset Option | Button Reset |
| Power Type | Electro-Mechanical |
| Input | 115V AC, 12V DC, 24V DC |
| Supply Voltage | 115V AC, 12V DC, 24V DC |
| Housings | Bail Mount, Base Mount, Panel Mount |
Part Numbers
B2-4904 – 115VAC, 4 figure, bail mount
B8-4904 – 24VDC, 4 figure, bail mount
B2-4906 – 115VAC, 6 figure, bail mount
B8-4906 – 24VDC, 6 figure, bail mount
D2-4906 – 115VAC, 6 figure, D Base Mount
D8-4906 – 24VDC, 6 figure, D Base Mount
P9-4904 – 12VDC, 4 figure, Panel Mount
P9-4906 – 12VDC, 6 figure, Panel Mount
P8-4906NR – 24VDC, 6 figure, panel mount, non reset
B8-4904 – 24VDC, 4 figure, bail mount
B2-4906 – 115VAC, 6 figure, bail mount
B8-4906 – 24VDC, 6 figure, bail mount
D2-4906 – 115VAC, 6 figure, D Base Mount
D8-4906 – 24VDC, 6 figure, D Base Mount
P9-4904 – 12VDC, 4 figure, Panel Mount
P9-4906 – 12VDC, 6 figure, Panel Mount
P8-4906NR – 24VDC, 6 figure, panel mount, non reset
Industry Applications
The 49 Series counters are designed for applications that demand high durability and precision. The compact design makes them ideal for indoor environments where installation space is limited. With multiple mounting options, it offers flexibility for various applications, including:
- Test Equipment
- Control Panels
- Automation and Monitoring Systems
- Office and Industrial Machinery
- Medical Devices
Features
The 49 Series counters are constructed with rugged operating mechanisms that require no lubrication or maintenance for an extended operational life. They are UL recognized, CE compliant, and RoHS certified. Features include:
- Quick push button reset.
- Speeds up to 600 counts per minute
- Precise 50ms on/off timing
- 4mm figures
- Built to exceed 100 million counts
The 49 Series can be ordered with the following options:
- Voltage: 115V AC or 24V DC
- Mounting: Panel, Base, or Bail
- Digits: 4 or 6 figures
- Reset: Non-reset option available
Make sure it's the right fit!
Consider Other Similar Counters
If you’re exploring electromechanical totalizing counters for your application, be sure to check out these alternative products in case they are a better fit:
- The 4017 Series are lower cost, more economical counters with multiple operating voltages and no reset.
- The 4916 Series are lower power consumption counters with a wider voltage range and no reset.
- B Series counters feature higher performance and a convenient front button reset.
- K0 Series counters are smaller, with higher accuracy.
- MK Series counters have an extra long count life and absolute accuracy.
- The W15 Series have a lower power consumption and a convenient front button reset.
Consider Customization
We offer a wide variety of customization options for any product. Anything you can dream up, from branding to housings, can be modified to meet your needs. Just send us a note in the contact form below to start the conversation.
Looking for a Replacement Meter?
We offer direct replacements for all discontinued counters from competitors like ENM. Plus, we have an exhaustive list of discontinued part numbers and their Trumeter alternative.
