TR3 Series

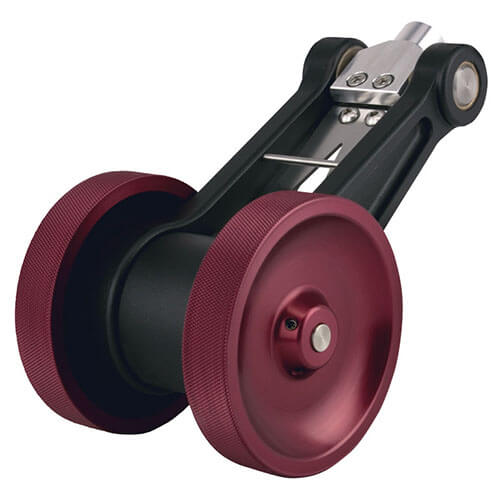

Heavy Duty Encoder with Integrated Measuring Wheel

The TR3 is an all-in-one heavy duty encoder and spring-loaded measuring wheel. It is available in a single or dual-wheel format and has a spring-loaded torsion arm for easy pressure adjustments and mounting in any orientation.

The TR3 is a versatile solution for tracking velocity, position or distance over a wide variety of surfaces in almost any industrial application.

Shop Our Distributors

Need a Large Quantity?
Contact us for inquiries on OEM pricing.

Specifications

Certifications

IP50, IP65

Input

5 – 24V DC

Mount

Stayrod

Current Consumption

100mA typical

Max Shaft Speed

6,000 RPM continuous

Output Circuits

A, B @ 20mA each

Frequency Response

200 KHz

Operating Temperature

0°C – 70°C

Part Numbers

TR3-K3A-0500V1QOC-F03 – Knurled 12″ Single Wheel, 500 CPR, 3′ Cable
TR3-K3A-0500V1QOC-M00-S3 – Knurled 12″ Single Wheel, 500 CPR, 2M Cable, IP66
TR3-K3B-0033V1QOC-M03 – Knurled 12″ Double Wheel, 33 CPR, 3M Cable
TR3-K3B-0033VIQOC-F00 – Knurled 12″ Double Wheel, 33 CPR, 18″ Cable
TR3-K3B-0100V1QOC-M03 – Knurled 12″ Double Wheel, 100 CPR, 3M Cable
TR3-K3B-0330V1QOC-F00 – Knurled 12″ Double Wheel, 330 CPR, 18″ Cable
TR3-K3B-0333V1QOC-F00 – Knurled 12″ Double Wheel, 333 CPR, 18″ Cable
TR3-K3B-0500V1QOC-F30 – Knurled 12″ Double Wheel, 500 CPR, 30′ Cable
TR3-K3B-0600V1QOC-F00 – Knurled 12″ Double Wheel, 600 CPR, 18″ Cable
TR3-K3B-1000V1QOC-F03 – Knurled 12″ Double Wheel, 1000 CPR, 3′ Cable
TR3-K3B-1000V1QOC-SMJ – Knurled 12″ Double Wheel, 1000 CPR, 5-pin M12
TR3-K5-B-0033VIQOC-M03 – Knurled 1/3M Double Wheel, 33 CPR, 3M Cable
TR3-K5B-0500V1QOC-M03 – Knurled 1/3M Double Wheel, 500 CPR, 3M Cable
TR3-K5B-0600V1QOC-M00 – Knurled 1/3M Double Wheel, 600 CPR, 2M Cable
TR3-U3A-0001V1QOC-F06 – Urethane 12″ Single Wheel, 1 CPR, 6′ Cable
TR3-U3A-0100V1QOC-F02 – Urethane 12″ Single Wheel, 100 CPR, 2′ Cable
TR3-U3A-0100V1QOC-F03 – Urethane 12″ Single Wheel, 100 CPR, 3′ Cable
TR3-U3A-0200V1QOC-F03 – Urethane 12″ Single Wheel, 200 CPR, 3′ Cable
TR3-U3A-0250-V1AOC-F03 – Urethane 12″ Single Wheel, 250 CPR, 3′ Cable
TR3-U3A-0250-V1AOC-F20 – Urethane 12″ Single Wheel, 250 CPR, 20′ Cable
TR3-U3A-0250V1QOC-M00 – Urethane 12″ Single Wheel, 250 CPR, 2M Cable
TR3-U3A-0500-V1AOC-M03 – Urethane 12″ Single Wheel, 500 CPR, 3M Cable
TR3-U3A-0500V1QOC-F03 – Urethane 12″ Single Wheel, 500 CPR, 3′ Cable
TR3-U3A-1024-V1QHV-F00 – Urethane 12″ Single Wheel, 1024 CPR, 18″ Cable
TR3-U3A-1500V1QOC-SMJ – Urethane 12″ Single Wheel, 1500 CPR, 5-pin M12
TR3-U3B-0033V1QOC-M03 – Urethane 12″ Double Wheel, 33 CPR, 3M Cable
TR3-U3B-0033V1QPP-M03 – Urethane 12″ Double Wheel, 33 CPR, 3M Cable
TR3-U3B-0100V1Q0C-F30 – Urethane 12″ Double Wheel, 100 CPR, 30′ Cable
TR3-U3B-0100V1QOC-F03 – Urethane 12″ Double Wheel, 100 CPR, 3′ Cable
TR3-U3B-0100V1QOC-F24 – Urethane 12″ Double Wheel, 100 CPR, 24′ Cable
TR3-U3B-0100V1QOC-F28 – Urethane 12″ Double Wheel, 100 CPR, 28′ Cable
TR3-U3B-0100V1QOC-J00 – Urethane 12″ Double Wheel, 100 CPR, M12 Connector
TR3-U3B-0100VIQOC-F30 – Urethane 12″ Double Wheel, 100 CPR, 30′ Cable
TR3-U3B-0100VIQOC-M00 – Urethane 12″ Double Wheel, 100 CPR, 2M Cable
TR3-U3B-0250V1QOC-F08 – Urethane 12″ Double Wheel, 250 CPR, 8′ Cable
TR3-U3B-0250V1QOC-M05 – Urethane 12″ Double Wheel, 250 CPR, 5M Cable
TR3-U3B-0500V1AOC-M04-L2 – Urethane 12″ Double Wheel, 500 CPR, 4M Cable
TR3-U3B-0500V1QOC-F25 – Urethane 12″ Double Wheel, 500 CPR, 25′ Cable
TR3-U3B-0500V1QOC-M00 – Urethane 12″ Double Wheel, 500 CPR, 2M Cable
TR3-U3B-0500V1QOC-M05 – Urethane 12″ Double Wheel, 500 CPR, 5M Cable
TR3-U3B-1000V1QOC-M00 – Urethane 12″ Double Wheel, 1000 CPR, 2M Cable
TR3-U3B-1200V1QOC-F03 – Urethane 12″ Double Wheel, 1200 CPR, 3′ Cable
TR3-U3B-6000-V1AOC-M00 – Urethane 12″ Double Wheel, 6000 CPR, 2M Cable
TR3-U5A-0300V1QOC-M00 – Urethane 1/3M Single Wheel, 300 CPR, 2M Cable
TR3-U5A-0500V1AOC-F00-L1 – Urethane 1/3M Single Wheel, 500 CPR, 18″ Cable
TR3-U5B-0030V1AOC-M00 – Urethane 1/3M Double Wheel, 30 CPR, 2M Cable
TR3-U5B-0100-V1QOC-M05 – Urethane 1/3M Double Wheel, 100 CPR, 5M Cable
TR3-U5B-0360V1QOC-M00 – Urethane 1/3M Double Wheel, 360 CPR, 2M Cable
