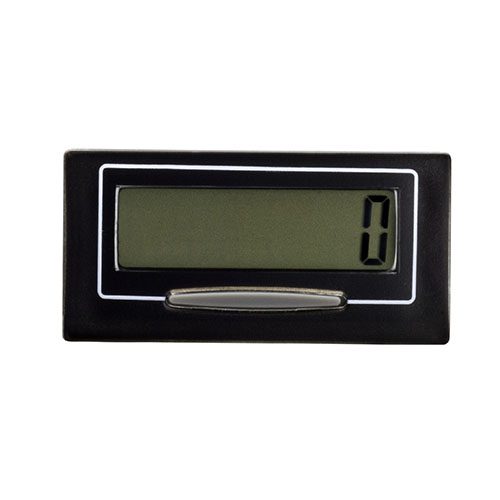

7111 / 7111HV
Self-Powered Multifunction AC & DC Totalizers
The 7111 and 7111HV are compact, self-powered counters with bi-directional counting.
The 7111 is a dry contact input counter that counts up to 10kHz and features contact closure / open collector low speed count input with integral de-bounce circuitry.
The 7111HV is a wide ranging voltage counter that triggers from any voltage between 10-240V AC or 10-110V DC.
Shop Our DistributorsNeed a Large Quantity?
Contact us for inquiries on OEM pricing.
Specifications
| Counter Type | Totalizing Counter |
|---|---|
| Certifications | CE, cUL, IP65, NEMA 4 & 12, UKCA, UL |
| Digits | 8 Digits |
| Reset Option | Manual Reset, Remote Reset |
| Power Type | Battery Powered |
| Input | 10 – 110V DC, 10 – 240V AC, Dry Contact Switch |
| Housings | 1/32nd DIN |
Part Numbers
7111 – totalizing counter, switch/dry contact input
7111HV – totalizing counter, 10-240VAC / 10-110VDC
7111HV – totalizing counter, 10-240VAC / 10-110VDC
Industry Applications
The Trumeter 7111 and 7111HV are ideal for applications where external power is not readily available. They are often used as a replacement for electro-mechanical counters. Common applications include:

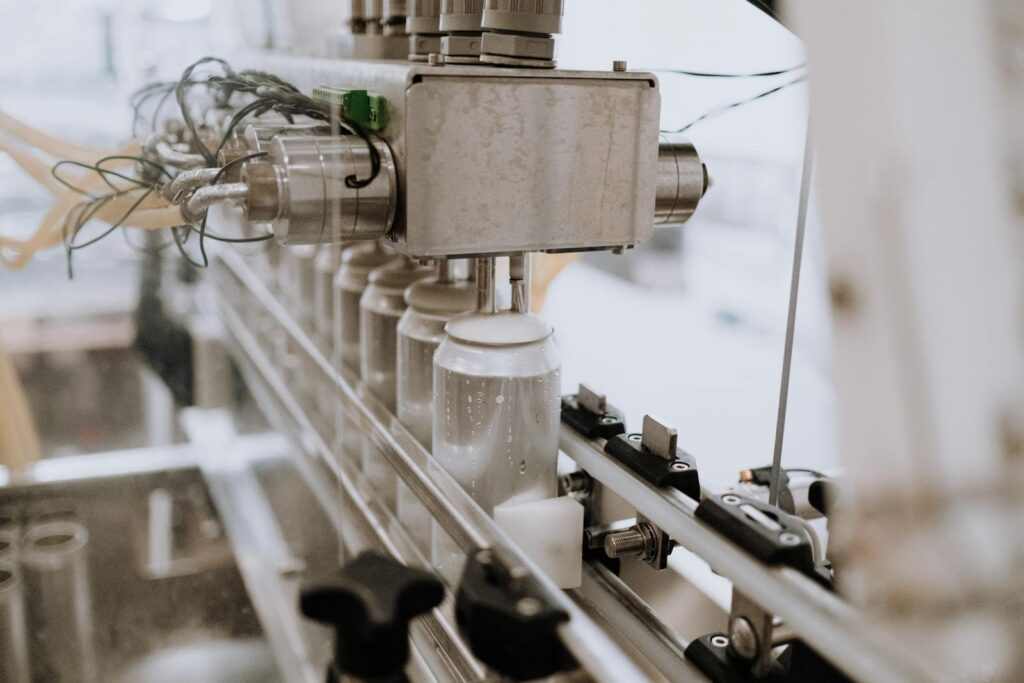

- Production lines
- Position, length, rotation and distance measuring
- Event counting

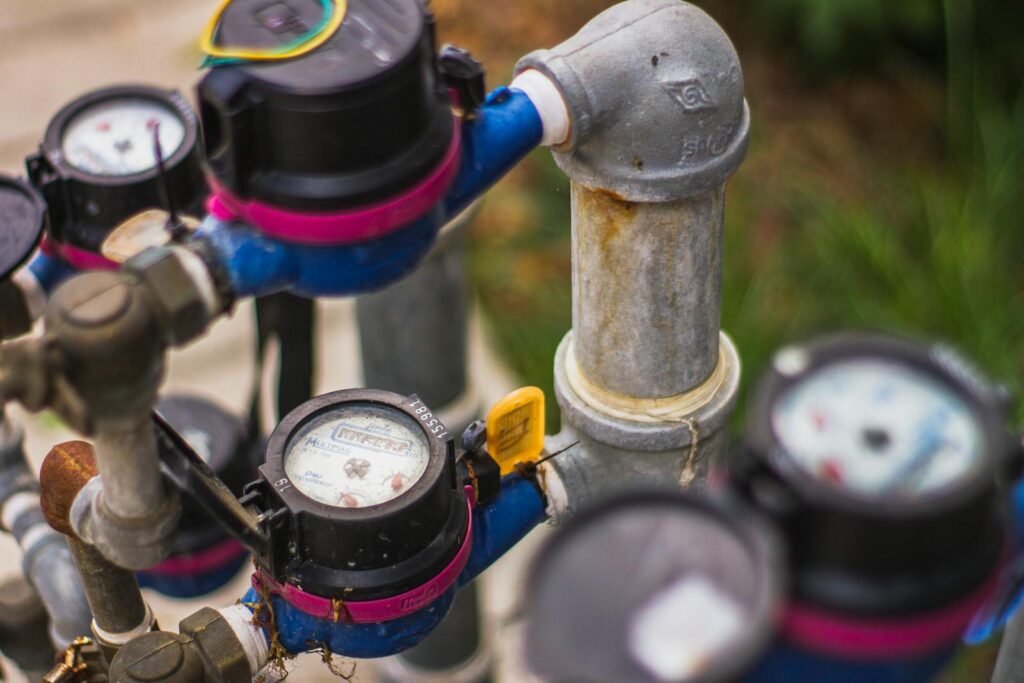

- Remote display for water meters
Features
Both the 7111 and 7111HV feature:
- Expected battery life of 10 years using the latest CMOS circuitry (non-replaceable lithium battery).
- An 8 digit, 9mm high contrast LCD display with leading zero blanking.
- Configurable decimal place (up to 3 places) configured by jumper link.
- Optional backlight, externally powered with 5V DC.
- Sealed to IP65 and NEMA 4X when you use the included mounting gasket.
- Fast and easy installation with screw connections on the rear of the unit.
- Included bezel and rear mounting clip for additional mounting options.
- Optional manual reset configured by jumper link.
The 7111 is our most popular counter used as a remote display for water meters.
Make sure it's the right fit!
Consider Other Similar Counters
If you’re exploring self-powered counters for your application, you may also want to consider the 6300 Series.
Choose the 6300 Series if you need an alert to set an icon for a specified time period. Any 6300 model that is listed as 630X-X500-0000 has two buttons that allow for the alert to be set.
Consider Customization
We offer a wide variety of customization options for any product. Anything you can dream up, from branding to housings, can be modified to meet your needs. Just send us a note in the contact form below to start the conversation.
