6300 Series
Self Powered Multifunction AC & DC Totalizers
The 6300 Series is a self-powered totalizing counter with a wide range of features including a reflective display and programmable alerts with icons.
Shop Our DistributorsNeed a Large Quantity?
Contact us for inquiries on OEM pricing.
Specifications
| Counter Type | Totalizing Counter |
|---|---|
| Certifications | CE, IP66, NEMA 4 & 12, ROHS, UL, WEEE |
| Digits | 8 Digits |
| Reset Option | Manual Reset, Remote Reset |
| Power Type | Battery Powered |
| Input | 10-300V DC, 20-300V AC, 3 – 30V DC, Dry Contact Switch |

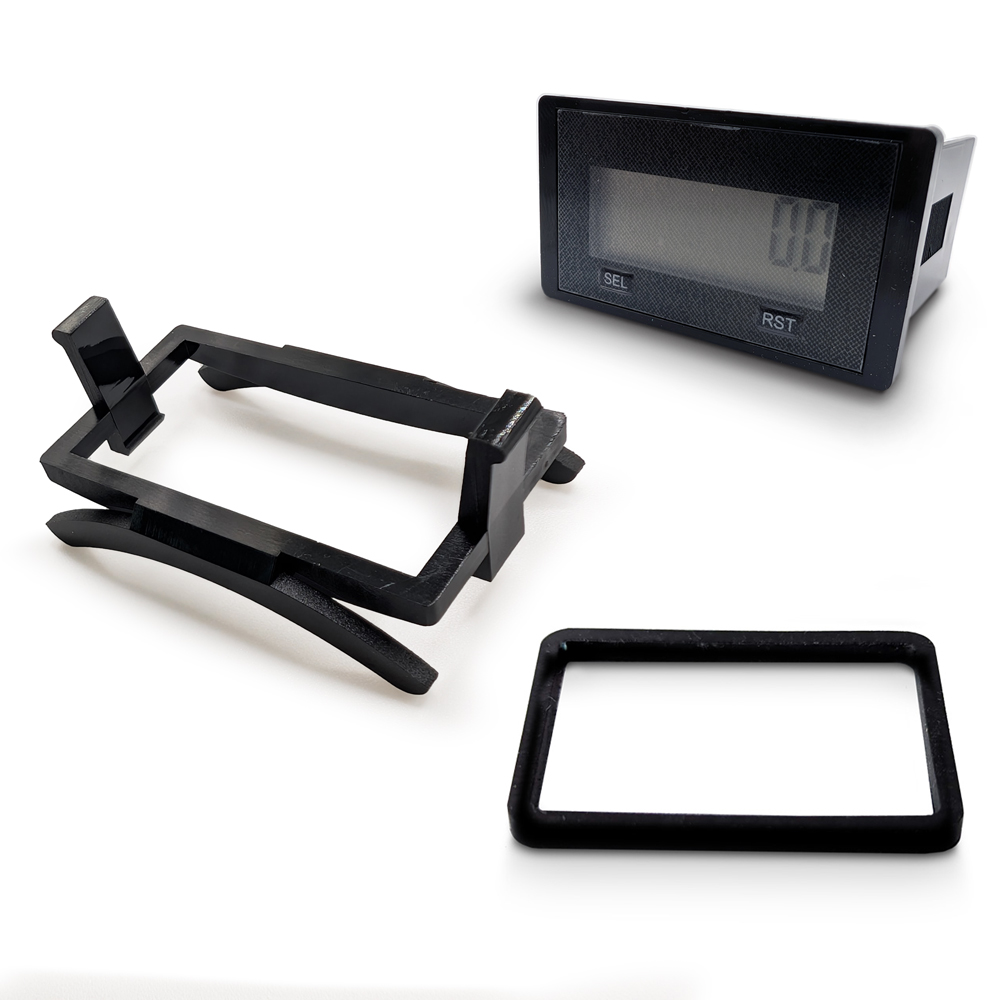

| Housings | 1/32nd DIN |
Part Numbers
6300-0000-0000 – Dual Range Counter 40/500hz Dry Contact Input Remote Reset
6300-0500-0000 – Dual Range Counter 40/500hz Dry Contact Input Programming/Fpreset Inc Alerts
6300-0600-0000 – Dual Range Counter 40/500hz Dry Contact Input Fpreset
6300-1000-0000 – Dual Range Counter 40/500hz 3-30 VDC Input Remote Reset
6300-1500-0000 – Dual Range Counter 40/500hz 3-30 VDC Input Programming/Fpreset Inc Alerts
6300-2500-0000 – Dual Range Counter 40/500hz 10-300/20-300 VDC/VAC Input Programming/Fpreset Inc Alerts
6301-2000-0000 – Counter 40hz – 10-300/20-300 VDC/VAC Input Remote Reset
6308-0500-0000 – Up Down Counter 500hz – Programming/Fpreset Inc Alerts
6300-0500-0000 – Dual Range Counter 40/500hz Dry Contact Input Programming/Fpreset Inc Alerts
6300-0600-0000 – Dual Range Counter 40/500hz Dry Contact Input Fpreset
6300-1000-0000 – Dual Range Counter 40/500hz 3-30 VDC Input Remote Reset
6300-1500-0000 – Dual Range Counter 40/500hz 3-30 VDC Input Programming/Fpreset Inc Alerts
6300-2500-0000 – Dual Range Counter 40/500hz 10-300/20-300 VDC/VAC Input Programming/Fpreset Inc Alerts
6301-2000-0000 – Counter 40hz – 10-300/20-300 VDC/VAC Input Remote Reset
6308-0500-0000 – Up Down Counter 500hz – Programming/Fpreset Inc Alerts
Industry Applications
The Trumeter 6300 Series counters are commonly used in control panels and equipment. They are suitable for both indoor and outdoor applications including:
- Manufacturing: Track machine cycles and operational hours.
- Power & Utilities: Log usage in circuit breakers, transformers, generators, and UPS systems.
- HVAC & Automation: Monitor fans and compressors.
- Medical & Laboratory: Count usage cycles.
- Agriculture: Track pump and equipment operation.
- Automotive & Transport: Log service intervals for fleet vehicles, forklifts, and construction equipment.
- Food & Beverage: Monitor machine cycles in mixers, ovens, conveyors, and packaging systems.
Features
The 6300 Series has a rugged plastic housing and is EMC compliant with EN61326 standards, making it ideal for demanding industrial environments. Features include:
- 8 digit ( 8mm), reflective LCD readout
- Programmable alerts with choice of 7 annunciator icons
- Up to 40 counts / second at low speed and 500 counts / second at high speed
- Internal battery with 10 year battery life
- Four selectable counting methods, including dual range mode
- Optional preset counter mode
- 100% accuracy when signal parameters are met
- Meets dielectric strength standards of 1000 VAC at 50/60Hz for one minute
- Resilient against vibrations (up to 55 Hz)
- Resilient against shock (10G operating, 30G non-operating)
Ordering Options
The 6300 Series offers a variety of models, with preset and alert customization available on request. You can choose:
Input options:
- Switch Input (No voltage)
- Low DC Voltage (3-30VDC) <2mA
- High Voltage (20-300VAC or 10-300VDC) <2mA

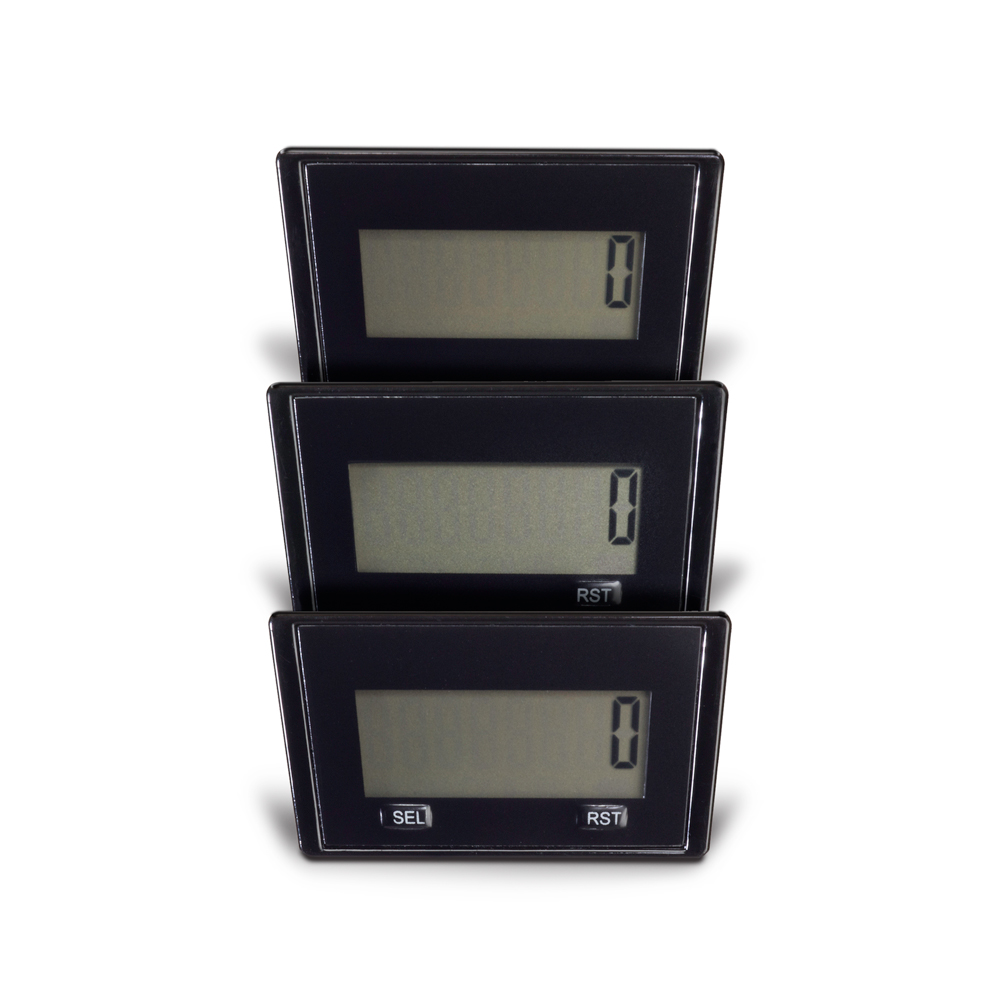

Reset options:

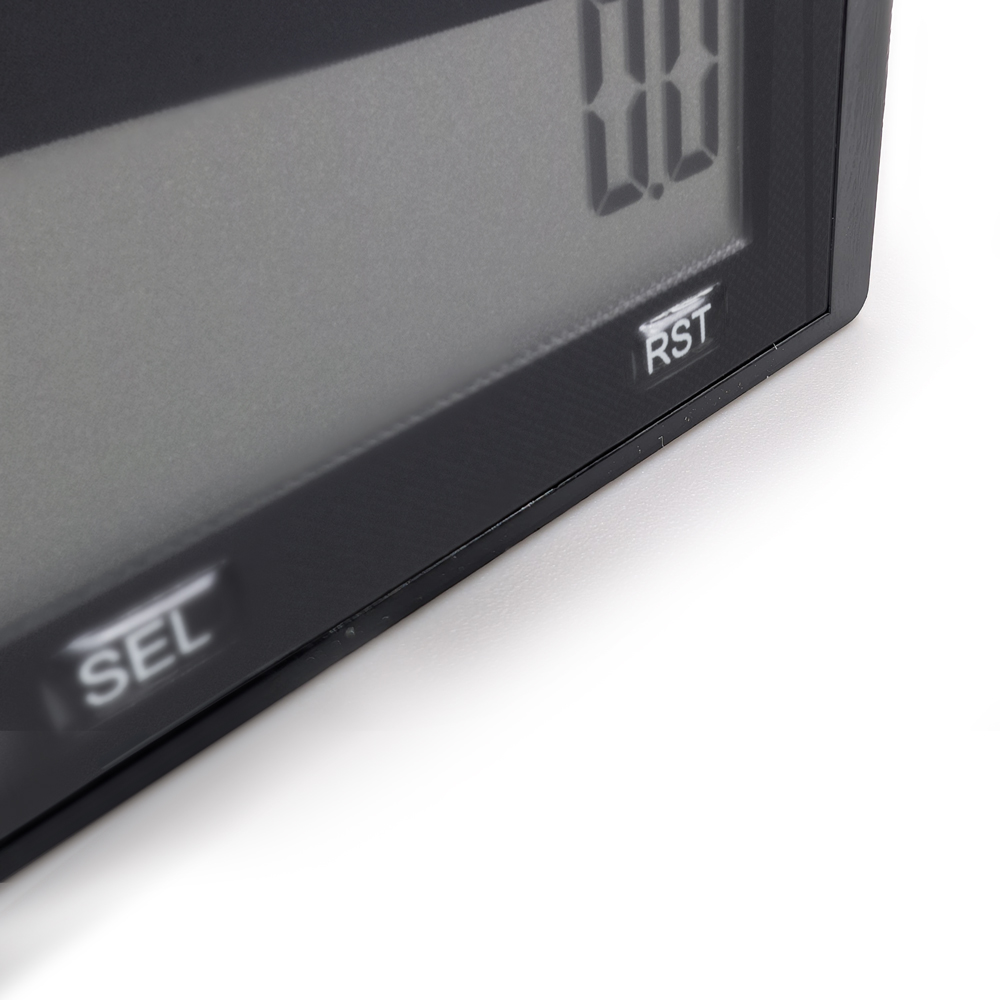

- Front panel manual reset
- Remote reset
- Non-reset
See the datasheet for part numbers corresponding to these options.
