4T764
50Khz Electronic Encoder

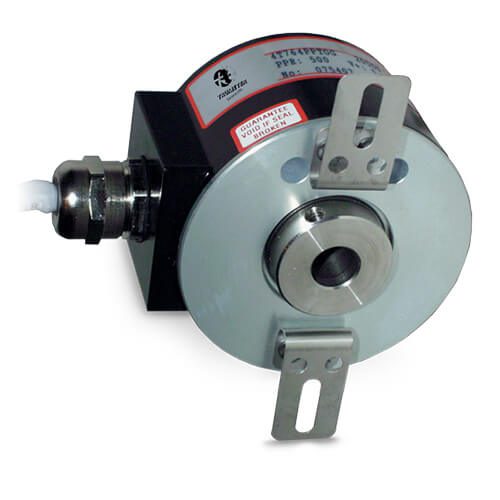

The 4T764 has a quadrature output circuit and a push/pull output as standard. The shaft may be fixed from either side, and the encoder body is fixed with two flexible mountings to compensate for minor shaft misalignment.
The 4T764 is ideal for a wide range of applications when used in conjunction with an electronic counter.
Specifications
| Input | 4.75 – 24V DC |
|---|---|
| Certifications | IP54 |
| Current Consumption | 75 – 125 mA |
| Max Shaft Speed | 6,000 RPM continuous |
| Shaft | 10mm hollow through shaft |
| Output Circuits | A, B @ 20mA each |
| Frequency Response | 50 KHz |
| Operating Temperature | -10°C – 70°C |
Part Numbers
4T764 Encoder – 10mm hollow through shaft, Quadrature output, Push pull output circuit
4T764PPT0G20333 333PPR – Push pull output
4T764PPT0G20500 500PPR – Push pull output
4T764PPT0G21000 1000PPR – Push pull output
019044-01 – Encoder shaft assembly for use with dual wheel measuring system
019141-01 – Encoder mounting bracket for mounting encoder onto 1 or 2 wheel measuring systems
4TCLP – Optional Encoder Clamp Ring
4T764PPT0G20333 333PPR – Push pull output
4T764PPT0G20500 500PPR – Push pull output
4T764PPT0G21000 1000PPR – Push pull output
019044-01 – Encoder shaft assembly for use with dual wheel measuring system
019141-01 – Encoder mounting bracket for mounting encoder onto 1 or 2 wheel measuring systems
4TCLP – Optional Encoder Clamp Ring
