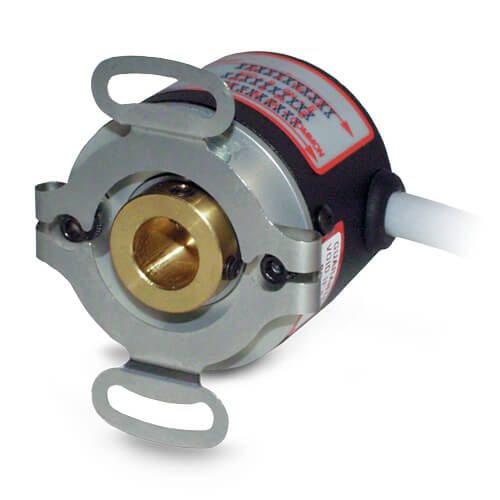

4T755
Miniature Electronic Incremental Encoder
The 4T755 is a small, high precision encoder that can mount directly onto motor shafts. Features include quadrature output and a flexible mounting bracket.
Specifications
| Input | 5 – 24V DC |
|---|---|
| Certifications | IP54 |
| Current Consumption | 80mA typical |
| Max Shaft Speed | 7,500 RPM continuous |
| Shaft | 10mm blind hollow shaft |
| Output Circuits | A, B @ 20mA each |
| Frequency Response | 125 KHz |
| Operating Temperature | 0°C – 70°C |
Part Numbers
4T755 – High precision encoder, 10mm blind hollow shaft, 125Khz frequency response, Quadrature output
4T755150PP0333328 333PPR – Push pull output
4T755150PP0500328 500PPR – Push pull output
4T755150PP1000328 1000PPR – Push pull output
4T755150PP0333328 333PPR – Push pull output
4T755150PP0500328 500PPR – Push pull output
4T755150PP1000328 1000PPR – Push pull output
