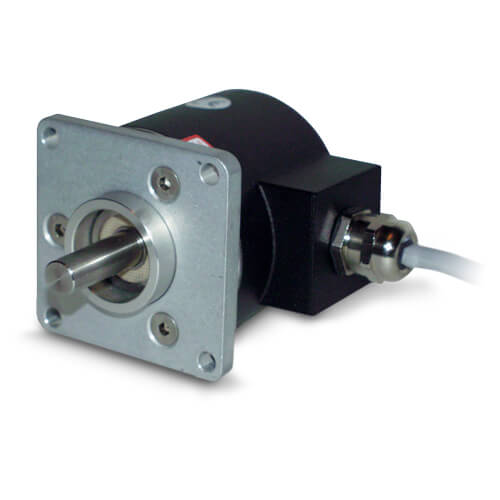

4T725
Heavy Duty Electronic Incremental Encoder
The 4T725 is a low cost, heavy duty size 25 encoder designed to suit a wide variety of industrial applications. A 2M cable is fitted and enters the unit through the side of the unit. A square mounting flange is fitted as standard.
Specifications
| Input | 5 – 24V DC |
|---|---|
| Certifications | IP54 |
| Current Consumption | 50 – 100 mA typical |
| Max Shaft Speed | 6,000 RPM continuous |
| Shaft | 10mm diameter |
| Output Circuits | A, B @ 20mA each |
| Frequency Response | 20 KHz |
| Operating Temperature | -10°C – 70°C |
Part Numbers
4T734 – Encoder 10mm shaft diameter, Square mount flange, Quadrature output
4T734PPF10SG20333 333PPR – Push pull output
4T734PPF10SG20500 500PRP – Push pull output
4T734PPF10SG21000 1000PRP – Push pull output
4T734PPF10SG20333 333PPR – Push pull output
4T734PPF10SG20500 500PRP – Push pull output
4T734PPF10SG21000 1000PRP – Push pull output
