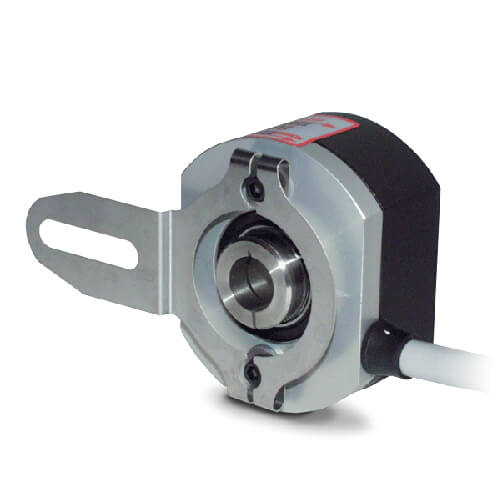

4T260
300Khz Electronic Incremental Encoder
The 4T260 electronic incremental encoder has an integral bearing set for stable and consistent operation without concerns for axial or radial shaft runout. Features include a quadrature output and anti-rotation flex mount arm.
The 4T260’s low-profile 30mm package design makes it a perfect solution for machine and motor applications.
Specifications
| Input | 5 – 24V DC |
|---|---|
| Certifications | IP54 |
| Current Consumption | 80mA typical |
| Max Shaft Speed | 7,500 RPM continuous |
| Shaft | 10mm hollow through shaft |
| Output Circuits | A, B @ 20mA each |
| Frequency Response | 300 KHz |
| Operating Temperature | 0°C – 100°C |
Part Numbers
4T260 – 30mm Encoder, Quadrature output, 10mm hollow shaft, 100°C operating temperature.
4T26015TPP0250A 250PPR – Push pull output
4T26015TPP0500A 500PPR – Push pull output
4T26015TPP1000A 1000PPR – Push pull output
4T26015TPP0250A 250PPR – Push pull output
4T26015TPP0500A 500PPR – Push pull output
4T26015TPP1000A 1000PPR – Push pull output
