22 Series

Mechanical Rotary Counter

The 22 Series is a range of versatile, durable rotary counters built for years of trouble-free use. Their compact design makes them easy to install on machinery requiring a precise count of rotations or length measurement, and the display is easy to read even when above or below eye level.

Shop Our Distributors

Need a Large Quantity?
Contact us for inquiries on OEM pricing.

Specifications

Counter Type

Rotary Counter

Certifications

ROHS, WEEE

Digits

3 Digits, 4 Digits, 5 Digits

Reset Option

Knob Reset

Power Type

Mechanical

Rotation

Top-Coming, Top-Going

Product Documents & Datasheet

Product Guides

Certifications

Resources

Part Numbers

7-2215 – Rotations, 5 Figures, Left Hand, Top Coming, Solid Drive Shaft
7-2235 – Rotations, 5 Figures, Right Hand, Top Coming, Solid Drive Shaft
7-2245 – Rotations, 5 Figures, Right Hand, Top Going, Solid Drive Shaft

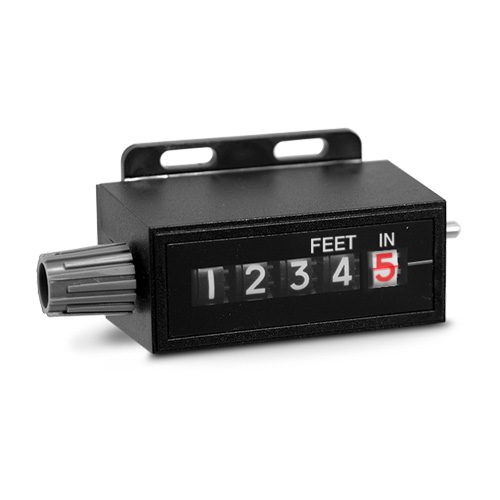

21-2235 – Feet & Inches, 5 Figures, Right Hand, Top Coming, Rotary Pin Drive
21-2245 – Feet & Inches, 5 Figures, Right Hand, Top Going, Rotary Pin Drive

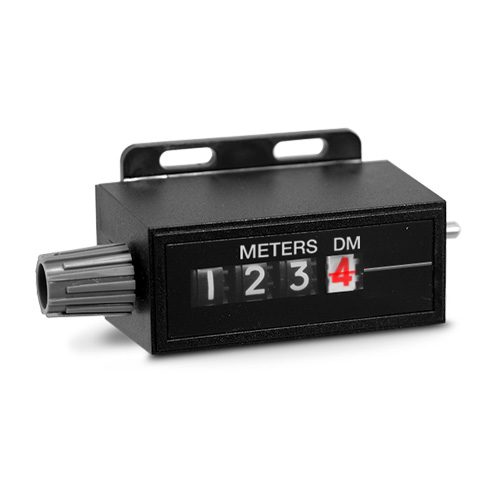

22-2235 – Meters & Decimeters, 4 Figures, Right Hand, Top Coming, Rotary Pin Drive
printing machine

Industry Applications

The 22 Series is specifically designed for use with length measurement equipment in a wide range of industrial applications including:

  • Wire, Cable, and Rope Spooling
  • Textile and Fabric Measurement
  • Paper Products and Printing
  • Sheet Metal and Plastic Processing
  • Extrusion Processes
  • Packaging
  • Assembly Lines
  • Winches and Hoists
  • Industrial Gear Systems

Features

The 22 Series counters are designed for long-term durability in industrial environments with a robust steel body construction and an IP40 protection rating. They deliver precise and consistent rotation counts or  length measurement. Features include:

  • Easy-to-read 5mm white-on-black figures
  • Compatible with standard 1 ft diameter measuring wheels
  • Base mount design for stable installation
  • 0.125” (3.2mm) solid drive shaft or rotary pin drive
  • Speeds of up to 500 revolutions per minute
  • Adds forward, subtracts in reverse
  • Knob reset for easy operation
  • Compact and lightweight at 1.5 oz (43g)
  • Lifespan of over 10 million counts
Knob Rest
Solid Drive Shaft | Rotary Pin Drive

Ordering Options

The 22 Series is available in three models to meet different application requirements:

  • Feet & Inches Measurement (1 rotation = 1 foot)
    • Comes with 5 figures and a solid drive shaft. Part numbers beginning in 21-22.
  • Meters & Decimeters Measurement (1 rotation = 1 meter)
    • Comes with 4 figures and rotary pin drive. Part numbers beginning in 22-22.
  • Rotation Counting (1 rotation = 10 counts)
    •  Comes with 5 figures and rotary pin drive. Part numbers beginning in 7-22.

You can also customize models with the following options:

  • Shaft location: left hand or right hand
  • Rotation direction: top coming or top going

See the datasheet for further ordering information.
