15T Series
Economical, High-Performance Encoder

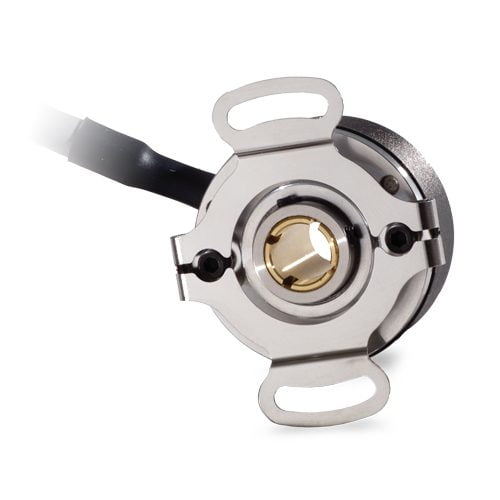

The 15T Series is an electronic encoder in a low profile package. It has an integral bearing set for stable and consistent operation without concerns for axial or radial shaft runout. The slotted flex mounts provide 20 or 30 degrees of rotational adjustment for commutation or index pulse timing. Features include up to 12 pole commutation and an innovative flex mounting system.
Shop Our DistributorsNeed a Large Quantity?
Contact us for inquiries on OEM pricing.
Specifications
| Certifications | IP50, IP64 |
|---|---|
| Input | 5 – 24V DC |
| Current Consumption | 100mA typical |
| Max Shaft Speed | 8,000 RPM continuous |
| Shaft | 10mm blind hollow bore, 10mm thru-bore, 5mm through shaft |
| Output Circuits | A, B @ 20mA each |
| Frequency Response | 200 KHz |
| Operating Temperature | 0°C – 70°C |
Part Numbers
15T-01SF-0100NV1QOC-F00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 18″ Cable
15T-01SF-0250NV1QOC-F03 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 3′ Cable
15T-01SF-0250NV1QOC-J00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-01SF-0360NV1QOC-J00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 360 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-01SF-0360NV1QPP-J00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 360 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-02SA-0500NV1QOC-J00 – 3/8″ Bore, 1.812″ Two Hole Flex Mount, 500 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-02SF-0025NV1QOC-F03 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 3′ Cable
15T-02SF-0025NV1QPP-J00 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-02SF-0100NV1QOC-F02 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 2′ Cable
15T-02SF-0250NV1QOC-J00 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-02SF-0400NV1QOC-F13 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 400 CPR, Open Collector, 13′ Cable
15T-04SF-0025NV1QOC-F00 – 6mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 18″ Cable
15T-04SF-0025NV1QOC-J00 – 6mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-04SF-0025NV1QPP-J00 – 6mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-04SF-0250NV1QOC-J00 – 6mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SD-0025NV1QPP-J00 – 10mm Bore, 1.575″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-0025NV1QOC-F03 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 3′ Cable
15T-05SF-0025NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0025NV1QPP-F03 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 3′ Cable
15T-05SF-0025NV1QPP-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-0050NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 50 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0100N12QOC-M05 – 10mm Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 5M Cable
15T-05SF-0100NV1QOC-F06 – 10mm Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 6′ Cable
15T-05SF-0150NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 150 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0250NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0250NV1QOC-M06 – 10mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 6M Cable
15T-05SF-0250NV1QPP-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-025NV1QOC-M06 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 6M Cable
15T-05SF-0300NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 300 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0360NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 360 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0360NV1QOC-M00 – 10mm Bore, 1.812″ Slotted Flex Mount, 360 CPR, Open Collector, 2M Cable
15T-05SF-0360NV1QPP-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 360 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-0500NV1QOC-F03 – 10mm Bore, 1.812″ Slotted Flex Mount, 500 CPR, Open Collector, 3′ Cable
15T-05SF-0500NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 500 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-15SF-0250NV1QOC-J00 – 3/16″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-01SF-0250NV1QOC-F03 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 3′ Cable
15T-01SF-0250NV1QOC-J00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-01SF-0360NV1QOC-J00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 360 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-01SF-0360NV1QPP-J00 – 1/4″ Bore, 1.812″ Slotted Flex Mount, 360 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-02SA-0500NV1QOC-J00 – 3/8″ Bore, 1.812″ Two Hole Flex Mount, 500 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-02SF-0025NV1QOC-F03 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 3′ Cable
15T-02SF-0025NV1QPP-J00 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-02SF-0100NV1QOC-F02 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 2′ Cable
15T-02SF-0250NV1QOC-J00 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-02SF-0400NV1QOC-F13 – 3/8″ Bore, 1.812″ Slotted Flex Mount, 400 CPR, Open Collector, 13′ Cable
15T-04SF-0025NV1QOC-F00 – 6mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 18″ Cable
15T-04SF-0025NV1QOC-J00 – 6mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-04SF-0025NV1QPP-J00 – 6mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-04SF-0250NV1QOC-J00 – 6mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SD-0025NV1QPP-J00 – 10mm Bore, 1.575″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-0025NV1QOC-F03 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 3′ Cable
15T-05SF-0025NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0025NV1QPP-F03 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 3′ Cable
15T-05SF-0025NV1QPP-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-0050NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 50 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0100N12QOC-M05 – 10mm Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 5M Cable
15T-05SF-0100NV1QOC-F06 – 10mm Bore, 1.812″ Slotted Flex Mount, 100 CPR, Open Collector, 6′ Cable
15T-05SF-0150NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 150 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0250NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0250NV1QOC-M06 – 10mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 6M Cable
15T-05SF-0250NV1QPP-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 250 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-025NV1QOC-M06 – 10mm Bore, 1.812″ Slotted Flex Mount, 25 CPR, Open Collector, 6M Cable
15T-05SF-0300NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 300 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0360NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 360 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-05SF-0360NV1QOC-M00 – 10mm Bore, 1.812″ Slotted Flex Mount, 360 CPR, Open Collector, 2M Cable
15T-05SF-0360NV1QPP-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 360 CPR, Push-Pull, 18″ Cable w/ 5-pin M12
15T-05SF-0500NV1QOC-F03 – 10mm Bore, 1.812″ Slotted Flex Mount, 500 CPR, Open Collector, 3′ Cable
15T-05SF-0500NV1QOC-J00 – 10mm Bore, 1.812″ Slotted Flex Mount, 500 CPR, Open Collector, 18″ Cable w/ 5-pin M12
15T-15SF-0250NV1QOC-J00 – 3/16″ Bore, 1.812″ Slotted Flex Mount, 250 CPR, Open Collector, 18″ Cable w/ 5-pin M12
